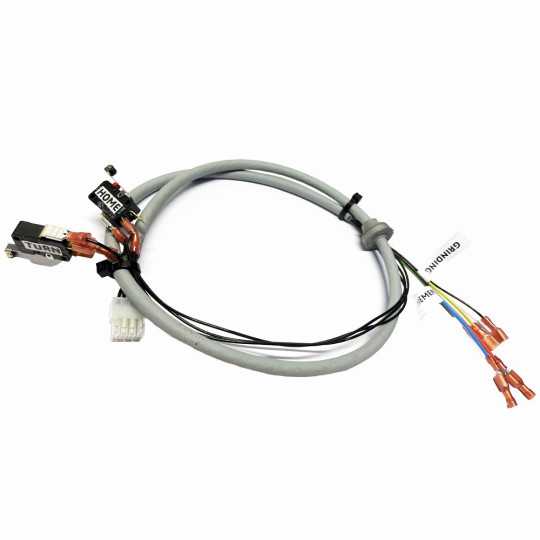

Parduc® A35 Wire set

Wire set that replaces wires inside the energy chain on Parduc A35 skate sharpener. Wire set is made of PVC coated robot cable. Parduc A35 Wire set can be changed on Parduc service, or by other professional mechanic. Ask more detailed changing instructions from your Parduc dealer.

Connector markings and colors:

Connector 1.              => Turn sensor
Connector 2.              => Home sensor
Connector 3.              => Turn and home sensor
Connector 4. (Yellow) => Grinding motor’s black wire
Connector 5.              => Grinding motor’s Red wire
Connector 6. (blue)    => Movement motor’s blue wire
Connector 7. (Red)     => Movement motor’s red wire

Before using the machine, check that the grinding motor is rotating CLOCKWISE.
